Smart EV Charger G2

A solar-focused smart charger range with OCPP, dynamic load balancing and strong integration options for SolaX energy systems.

Estimated charger price

Approx. from $1200

Estimated installation

around $700–$1,500

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

FIND MY CHARGERBack to chargers

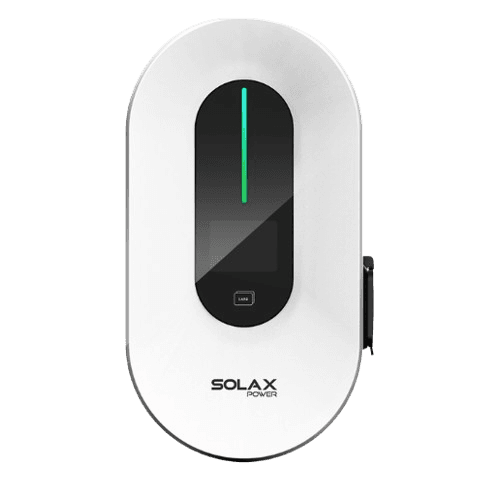

SolaX Smart EV Charger G2

Overview

The SolaX Smart EV Charger G2 range includes the X1-HAC-7 single-phase model with up to 7.2 kW output and the X3-HAC-22 model with up to 22 kW output. Current Australian documentation lists Type 2 plug and socket variants, Wi-Fi, Ethernet, optional 4G and dual RS485 connectivity, OCPP 1.6J, Modbus TCP/RTU, Cloud API, SolaXCloud remote control, RFID, dynamic load balancing and solar-surplus charging. The Type P plug version uses a 6.5 m cable and is rated IP65; the socket version is rated IP54. The housing is rated IK10.

Key highlights

Up to 7.2 kW single-phase / 22 kW three-phase models

Type 2 plug or socket variants

6.5 m cable on Type P plug version

Dynamic load balancing

Solar-surplus and zero-export charging support

Automatic one-/three-phase switching on compatible G2 configurations

OCPP 1.6J

Modbus TCP / Modbus RTU / Cloud API

Wi-Fi, Ethernet, optional 4G and dual RS485

SolaXCloud app control and RFID

IP65 plug / IP54 socket · IK10 housing

3-year Australian warranty

Best for

  • Homes using compatible SolaX solar or battery equipment
  • Solar households wanting surplus-energy charging
  • Users wanting OCPP and Modbus connectivity
  • Installations needing dynamic load balancing

Not ideal for

  • — 4G is optional rather than standard.
  • — Weather protection differs by configuration: IP65 for the plug version and IP54 for the socket version.
  • — Confirm the exact X1 or X3 model and plug/socket configuration before purchase.
  • — Australian market feedback is still relatively limited, and some users have reported issues with app or data logging.

Using this charger at home in Australia

This charger supports higher AC charging speeds where both your home's electrical supply and your EV's onboard AC charger allow. Confirm your home's phase support with a licensed electrician, and check your EV's maximum AC charging capability.

Where the charger and required monitoring equipment support solar-aware charging, the system can adjust EV charging in response to available solar generation. The exact behaviour depends on the charger, metering or sensors, inverter setup and configuration.

Where supported and correctly configured, load management can reduce EV charging power when other household loads increase, helping keep total demand within the configured site limit.

OCPP support allows the charger to communicate with compatible OCPP charging-management platforms. OCPP support by itself does not guarantee integration with a home battery, solar inverter, electricity tariff or every third-party platform.

A dedicated home EV charger should be installed by a licensed electrician. The installer should confirm the circuit design, switchboard capacity, protection requirements and any applicable local electricity-network requirements.

Key specifications

Estimated installationaround $700–$1,500
Power22 kW
PhaseSingle + three-phase
Cable6.5 m Type 2 cable on plug version; socket version available
Weather ratingIP65 plug version / IP54 socket version
Warranty3 years
Solar supportSurplus solar
OCPPYes
Load balancingYes
App controlYes

Charger prices are estimates based on publicly available pricing we could verify and may change with retailer offers, promotions and product configuration. Installation is additional.

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

Manufacturer information

Visit the manufacturer's website for current product details, warranty terms, and support.

Visit manufacturer website

Manufacturer website links are provided for reference only. Home Charger Match is independently operated and not affiliated with any charger manufacturer. Always confirm current product specifications, availability, and warranty terms with the manufacturer or seller before purchasing.
