Wallbox

Pulsar Plus 7.4kW

Name: Pulsar Plus 7.4kW
Brand: Wallbox
Price: 1549 AUD
Availability: InStock

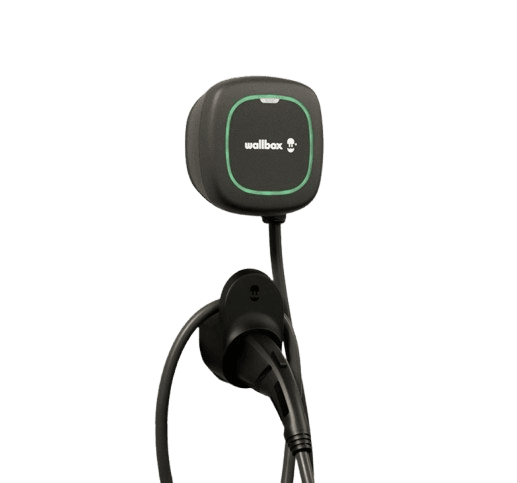

The Wallbox Pulsar Plus 7.4 kW is a compact single-phase smart charger with Wi-Fi and Bluetooth connectivity, app control and a tethered Type 2 cable. Wallbox supports Eco-Smart solar charging and Power Boost load management when the required compatible energy meter is installed. OCPP compatibility is also documented.

Estimated charger price

around $1,549

Estimated installation

around $700–$1,500

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

FIND MY CHARGER Back to chargers

Overview

The Wallbox Pulsar Plus supports app-based charging control, Wi-Fi and Bluetooth connectivity, OCPP and Wallbox energy-management features. Eco-Smart can use available solar generation for EV charging, while Power Boost can dynamically adjust charging power in response to household demand when the compatible power meter is installed. The Pulsar Plus family also includes higher-power three-phase configurations.

Key highlights

Compact charger design

OCPP compatible

Wi-Fi and Bluetooth connectivity

Eco-Smart solar charging with compatible metering

Power Boost load management with compatible metering

IP54 enclosure rating

3-year warranty

Best for

Small garage or driveway installations (compact design)
Users comfortable with a comprehensive app ecosystem
Households wanting OCPP-compatible smart charging
Solar homes seeking Eco-Smart mode

Not ideal for

— Users wanting the longest possible cable (5m standard)
— Homes preferring a simpler, non-app-based charger

Using this charger at home in Australia

On a suitable installation, this charger can provide up to 7.4 kW. Actual charging speed also depends on the vehicle's onboard AC charging limit and the configured site capacity.

Where the charger and required monitoring equipment support solar-aware charging, the system can adjust EV charging in response to available solar generation. The exact behaviour depends on the charger, metering or sensors, inverter setup and configuration.

Where supported and correctly configured, load management can reduce EV charging power when other household loads increase, helping keep total demand within the configured site limit.

OCPP support allows the charger to communicate with compatible OCPP charging-management platforms. OCPP support by itself does not guarantee integration with a home battery, solar inverter, electricity tariff or every third-party platform.

The manufacturer lists an IP54 enclosure rating for this charger. The final mounting location should follow the manufacturer's installation requirements and be confirmed by the installer.

A dedicated home EV charger should be installed by a licensed electrician. The installer should confirm the circuit design, switchboard capacity, protection requirements and any applicable local electricity-network requirements.

Key specifications

Estimated installationaround $700–$1,500

Power7.4 kW

PhaseSingle-phase

Cable5m tethered

Weather ratingIP54

Warranty3 years

Solar supportSurplus solar

OCPPYes

Load balancingYes

App controlYes

Charger prices are estimates based on publicly available pricing we could verify and may change with retailer offers, promotions and product configuration. Installation is additional.

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.
