Ocular

Ocular IQ Home Solar 7kW

Name: Ocular IQ Home Solar 7kW
Brand: Ocular
Price: 1195 AUD
Availability: InStock

An Australian-focused smart charger built for solar homes, offering three charging modes and native support for surplus solar diversion.

Estimated charger price

around $1,195

Estimated installation

around $700–$1,500

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

FIND MY CHARGER Back to chargers

Overview

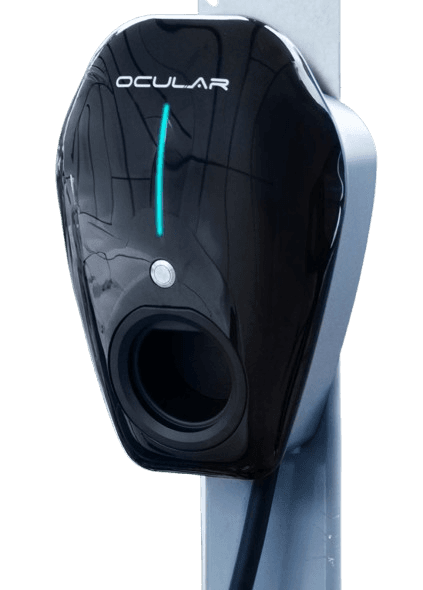

The Ocular IQ Home Solar 7kW is a single-phase solar-aware charger with Fast, Solar Assist and Solar Only charging modes. Ocular specifies a maximum single-phase output of 7.2 kW at 32 A, with a 5 m tethered Type 2 cable and IP55 protection. CT clamps are used to measure available solar export and support the charger's solar and load-management functions. The charger also includes app control, integrated metering and OCPP support.

Key highlights

Fast, Solar Assist and Solar Only charging modes

CT-based solar export monitoring

Built-in load-management capability

OCPP 1.6J and 2.0.1 support; some OCPP functionality may require a firmware upgrade.

IP55 enclosure rating

3-year warranty

Best for

Australian homes with rooftop solar
Solar households wanting three charging modes
Users needing OCPP integration
Homes needing built-in load balancing

Not ideal for

— Users seeking the simplest possible plug-and-charge setup
— Households without solar and no plans to install

Using this charger at home in Australia

On a suitable installation, this charger can provide up to 7.2 kW. Actual charging speed also depends on the vehicle's onboard AC charging limit and the configured site capacity.

Where the charger and required monitoring equipment support solar-aware charging, the system can adjust EV charging in response to available solar generation. The exact behaviour depends on the charger, metering or sensors, inverter setup and configuration.

Where supported and correctly configured, load management can reduce EV charging power when other household loads increase, helping keep total demand within the configured site limit.

OCPP support allows the charger to communicate with compatible OCPP charging-management platforms. OCPP support by itself does not guarantee integration with a home battery, solar inverter, electricity tariff or every third-party platform.

The manufacturer lists an IP55 enclosure rating for this charger. The final mounting location should follow the manufacturer's installation requirements and be confirmed by the installer.

A dedicated home EV charger should be installed by a licensed electrician. The installer should confirm the circuit design, switchboard capacity, protection requirements and any applicable local electricity-network requirements.

Key specifications

Estimated installationaround $700–$1,500

Power7.2 kW

PhaseSingle-phase

Cable5m tethered

Weather ratingIP55

Warranty3 years

Solar supportSurplus solar

OCPPYes

Load balancingYes

App controlYes

Charger prices are estimates based on publicly available pricing we could verify and may change with retailer offers, promotions and product configuration. Installation is additional.

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.
