Sigenergy

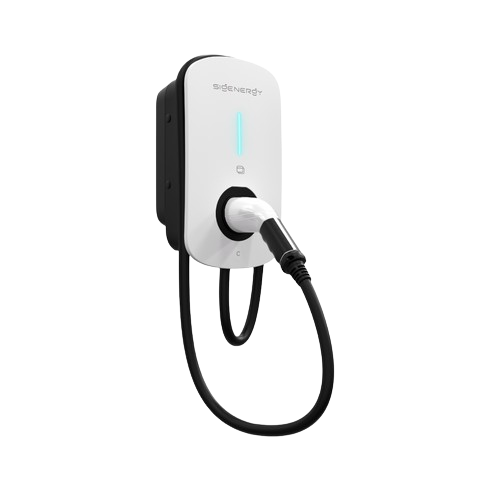

AC EV Charger 22kW

Name: AC EV Charger 22kW
Brand: Sigenergy
Price: 1400 AUD
Availability: InStock

A three-phase AC charger with OCPP support and deeper solar and load-management functions when used with compatible Sigenergy equipment.

Estimated charger price

Approx. from $1,400

Estimated installation

around $700–$1,500

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

FIND MY CHARGER Back to chargers

Overview

The Sigen EV AC Charger 22 is a 22 kW, 32 A three-phase charger. The current Australian range includes Type 2 tethered and socket variants, with a 5 m standard cable on the tethered version. Sigenergy documents 4G, Wi-Fi and Fast Ethernet connectivity, mySigen app control, RFID or automatic start, OCPP 1.6J and IP65 protection. Solar charging modes require integration with SigenStor, while dynamic load management requires a Sigen Power Sensor. Sigenergy's separate Sigen EV DC Charging Module is the product associated with bidirectional V2X operation.

Key highlights

22 kW three-phase / 32 A

Type 2 tethered and socket variants

5 m standard cable on tethered version

OCPP 1.6J

mySigen app, RFID and automatic start

4G, Wi-Fi and Fast Ethernet

Solar charging modes with SigenStor

Dynamic load management with Sigen Power Sensor

IP65

3-year AU/NZ warranty

Best for

Three-phase homes wanting up to 22 kW AC charging capability
Homes already using or planning a Sigenergy energy system
Users wanting OCPP 1.6J support
Solar households able to use the required Sigenergy energy-management hardware

Not ideal for

— 22 kW charging requires suitable three-phase supply and a vehicle that can accept the available AC charging rate.
— Solar charging modes require SigenStor integration.
— Dynamic load management requires a Sigen Power Sensor.
— Bidirectional V2H/V2G capability belongs to Sigenergy's separate DC charging architecture, not this AC charger.

Using this charger at home in Australia

This charger supports higher AC charging speeds where both your home's electrical supply and your EV's onboard AC charger allow. Confirm your home's phase support with a licensed electrician, and check your EV's maximum AC charging capability.

Where the charger and required monitoring equipment support solar-aware charging, the system can adjust EV charging in response to available solar generation. The exact behaviour depends on the charger, metering or sensors, inverter setup and configuration.

Where supported and correctly configured, load management can reduce EV charging power when other household loads increase, helping keep total demand within the configured site limit.

OCPP support allows the charger to communicate with compatible OCPP charging-management platforms. OCPP support by itself does not guarantee integration with a home battery, solar inverter, electricity tariff or every third-party platform.

The manufacturer lists an IP65 enclosure rating for this charger. The final mounting location should follow the manufacturer's installation requirements and be confirmed by the installer.

A dedicated home EV charger should be installed by a licensed electrician. The installer should confirm the circuit design, switchboard capacity, protection requirements and any applicable local electricity-network requirements.

Key specifications

Estimated installationaround $700–$1,500

Power22 kW

PhaseThree-phase

CableUntethered (socket)

Weather ratingIP65

Warranty3 years

Solar supportSurplus solar

OCPPYes

Load balancingYes

App controlYes

Charger prices are estimates based on publicly available pricing we could verify and may change with retailer offers, promotions and product configuration. Installation is additional.

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.
