Wallbox

Pulsar Max

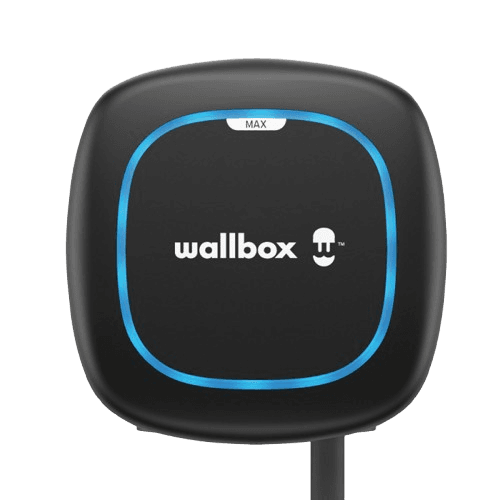

Name: Pulsar Max
Brand: Wallbox
Price: 1750 AUD
Availability: InStock

A compact Wallbox home charger with app control, OCPP support and optional solar and power-management functions using compatible Wallbox metering.

Estimated charger price

Approx. from $1,750

Estimated installation

around $700–$1,500

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

FIND MY CHARGER Back to chargers

Overview

The Wallbox Pulsar Max is available in 7.4 kW single-phase and 11 or 22 kW three-phase versions. It uses a tethered Type 2 cable, with 5 m standard and 7 m options, and connects through Wi-Fi and Bluetooth to the Wallbox app. OCPP 1.6J is supported. Eco-Smart solar charging, Power Boost and Dynamic Power Sharing require compatible Wallbox power-meter hardware. The enclosure is rated IP55 / IK10.

Key highlights

7.4 kW single-phase / 11 or 22 kW three-phase variants

5 m tethered Type 2 cable, with 7 m option

Wallbox app

Wi-Fi and Bluetooth

OCPP 1.6J

Eco-Smart solar charging with compatible Wallbox meter

Power Boost and Dynamic Power Sharing with compatible Wallbox metering

IP55 / IK10

3-year Australian-market warranty presentation

Best for

Homes wanting Wallbox app control and OCPP 1.6J
Single-phase or three-phase installations choosing the matching Pulsar Max variant
Solar households prepared to install compatible Wallbox metering
Installations where compact wall-mounted hardware is useful

Not ideal for

— Eco-Smart and dynamic power-management functions require compatible Wallbox metering hardware.
— The standard tethered cable is 5 m; a 7 m version is available.
— Wallbox does not currently have a local Australian support office, so warranty and technical support may be handled through the installer or overseas support channels.

Using this charger at home in Australia

This charger supports higher AC charging speeds where both your home's electrical supply and your EV's onboard AC charger allow. Confirm your home's phase support with a licensed electrician, and check your EV's maximum AC charging capability.

Where the charger and required monitoring equipment support solar-aware charging, the system can adjust EV charging in response to available solar generation. The exact behaviour depends on the charger, metering or sensors, inverter setup and configuration.

Where supported and correctly configured, load management can reduce EV charging power when other household loads increase, helping keep total demand within the configured site limit.

OCPP support allows the charger to communicate with compatible OCPP charging-management platforms. OCPP support by itself does not guarantee integration with a home battery, solar inverter, electricity tariff or every third-party platform.

The manufacturer lists an IP55 enclosure rating for this charger. The final mounting location should follow the manufacturer's installation requirements and be confirmed by the installer.

A dedicated home EV charger should be installed by a licensed electrician. The installer should confirm the circuit design, switchboard capacity, protection requirements and any applicable local electricity-network requirements.

Key specifications

Estimated installationaround $700–$1,500

Power22 kW

PhaseSingle + three-phase

Cable5m tethered

Weather ratingIP55

Warranty3 years

Solar supportSurplus solar

OCPPYes

Load balancingYes

App controlYes

Charger prices are estimates based on publicly available pricing we could verify and may change with retailer offers, promotions and product configuration. Installation is additional.

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.
