Enphase

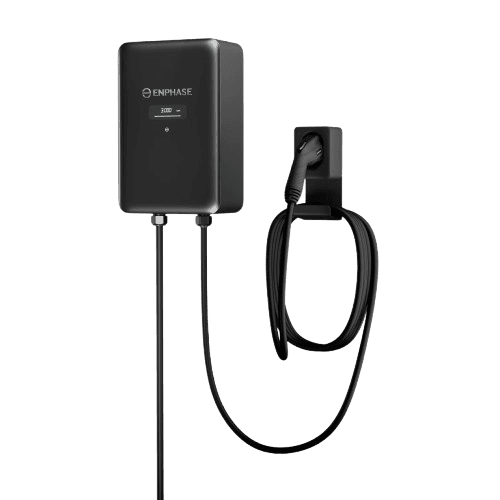

IQ EV Charger 2

Name: IQ EV Charger 2
Brand: Enphase
Price: 2084 AUD
Availability: InStock

7.4/22 kW Australian charger that can operate standalone, with OCPP 2.0.1 and additional solar and load-management functions when correctly integrated.

Estimated charger price

around $2,050

Estimated installation

around $700–$1,500

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.

FIND MY CHARGER Back to chargers

Overview

The Australian IQ EV Charger 2, model IQ-EVSE-EU-3032-0105-1300, supports up to 7.4 kW single-phase or 22 kW three-phase at 32 A per phase. It includes a 7.5 m tethered Type 2 cable, IP55/IK10 enclosure, Wi-Fi, Bluetooth, Ethernet and OCPP 2.0.1. It can operate as a standalone smart charger without an Enphase solar system. Solar self-consumption, dynamic load balancing and automatic phase switching depend on the supported site configuration and consumption measurement. Enphase also documents support for third-party PV through an IQ Gateway. The ANZ datasheet describes ISO 15118 as hardware ready; this should not be presented as currently enabled Australian V2H or V2G operation.

Key highlights

7.4 kW single-phase / up to 22 kW three-phase

32 A per phase maximum

7.5 m tethered Type 2 cable

IP55 / IK10

Wi-Fi, Bluetooth and Ethernet

OCPP 2.0.1

Standalone smart-charger operation supported

Solar self-consumption and automatic phase switching available in supported integrated configurations

Dynamic load balancing requires compatible consumption measurement

ISO 15118 hardware ready; not a current V2H/V2G claim

5-year warranty

Best for

Single- or three-phase homes needing up to 22 kW where the vehicle and supply support it
Drivers who need a 7.5 m tethered Type 2 cable
Homes using Enphase or supported third-party solar integration
Installations requiring OCPP 2.0.1

Not ideal for

— Buyers expecting solar-surplus charging from a completely standalone charger with no site energy measurement
— Homes where the vehicle's onboard AC charger cannot use the charger's higher output
— Homes where the electrical supply cannot support the configured charging current
— Buyers expecting currently enabled V2H or V2G functionality from this model

Using this charger at home in Australia

This charger supports higher AC charging speeds where both your home's electrical supply and your EV's onboard AC charger allow. Confirm your home's phase support with a licensed electrician, and check your EV's maximum AC charging capability.

Where the charger and required monitoring equipment support solar-aware charging, the system can adjust EV charging in response to available solar generation. The exact behaviour depends on the charger, metering or sensors, inverter setup and configuration.

Where supported and correctly configured, load management can reduce EV charging power when other household loads increase, helping keep total demand within the configured site limit.

OCPP support allows the charger to communicate with compatible OCPP charging-management platforms. OCPP support by itself does not guarantee integration with a home battery, solar inverter, electricity tariff or every third-party platform.

The manufacturer lists an IP55 enclosure rating for this charger. The final mounting location should follow the manufacturer's installation requirements and be confirmed by the installer.

A dedicated home EV charger should be installed by a licensed electrician. The installer should confirm the circuit design, switchboard capacity, protection requirements and any applicable local electricity-network requirements.

Key specifications

Estimated installationaround $700–$1,500

Power7.4 kW single-phase / up to 22 kW three-phase

PhaseSingle- or three-phase

Cable7.5 m tethered Type 2

Weather ratingIP55 / IK10

Warranty5 years

Solar supportSurplus solar

OCPPYes

Load balancingSupported with compatible site consumption measurement

App controlYes

Charger prices are estimates based on publicly available pricing we could verify and may change with retailer offers, promotions and product configuration. Installation is additional.

Typical installation estimate for a straightforward home installation. Longer cable runs, switchboard upgrades, three-phase work, trenching or other site requirements can increase the cost.
